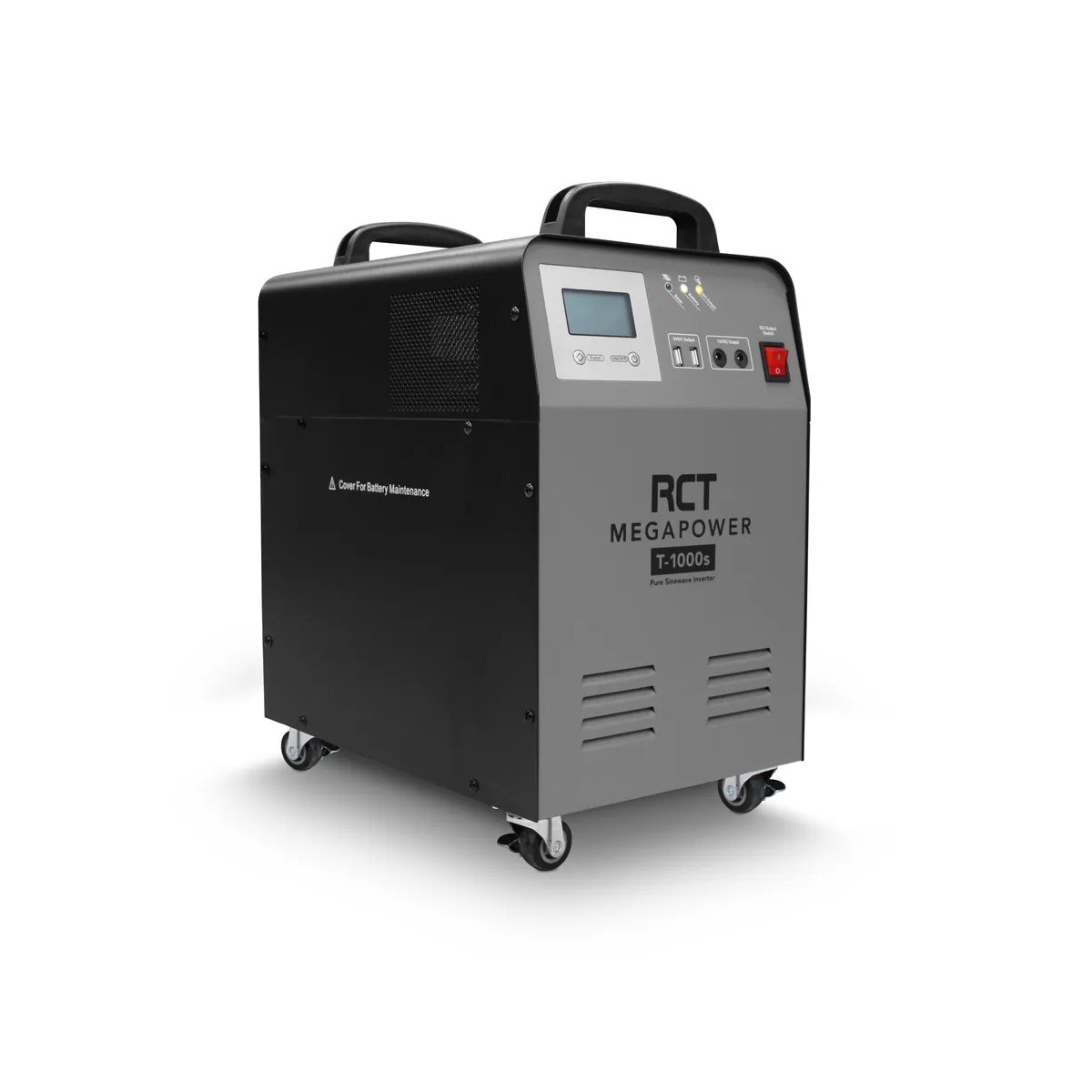

RCT MegaPower 1kVA 1kW Inverter Trolley with 1 X 100Ah Battery

This power backup system is likely designed to provide electrical power during outages or in locations without a reliable electricity supply. The 1kVA inverter is capable of handling a moderate load, and the 100Ah battery provides energy storage for extended backup times.

Operational conditions

• Storage temperature (T-T): -25 – 55
• Operating temperature (T-T): -20 – 50
• Operating relative humidity (H-H): 0 – 90
• Storage relative humidity (H-H): 0 – 90

Features

• Pure Sinewave for Sensitive Electronics & Motorised Loads
• Microprocessor Control Optimizes Reliability
• Input Power Factor Correction
• Output Power Factor 1.0
• Comprehensive Display Allows Easy Monitoring & Access of UPS Status
• Built-in MPPT solar charger
• 2 x USB 5 V DC output and 2 x 12 V DC output
• Battery cut off switch for safety
• Pre-installed batteries

Specifications:

• Rated Power: 1000 W
• Display: LCD
• Battery voltage: 12
• LED indicators: Y
• Output Volatage: 220 VAC
• Output Frequency: 50 / 60 Hz
• Output Waveform: Pure Sine Wave

Solar Input:

• Maximum Photovoltaic
• Voltage (VDC): 25 V
• Charge Voltage (VDC): 10 V – 25 V
• Rated Charge Current(A): 30 A
• Maximum Power(Wp): 360 Wp
• Voltage Overcharge Protection (VDC): 14.2 V
• Voltage Overcharge Recovery (VDC): 14.0 V
• Voltage of Floating Charge (VDC): 13.7 V

Output:

• AC Output: 2 x SA 3 Pin Socket – 230 V 50 Hz, 1000 VA / 1000 W Max. (Combined)
• USB Output: 2 x USB Type A Port – 5 VDC 2 A Max.
• DC Output: 2 x 12 V DC Port 2 A Max.
• Battery Type : 1 x 12 DC 100 AH Deep Cycle, VRLA Gel Battery

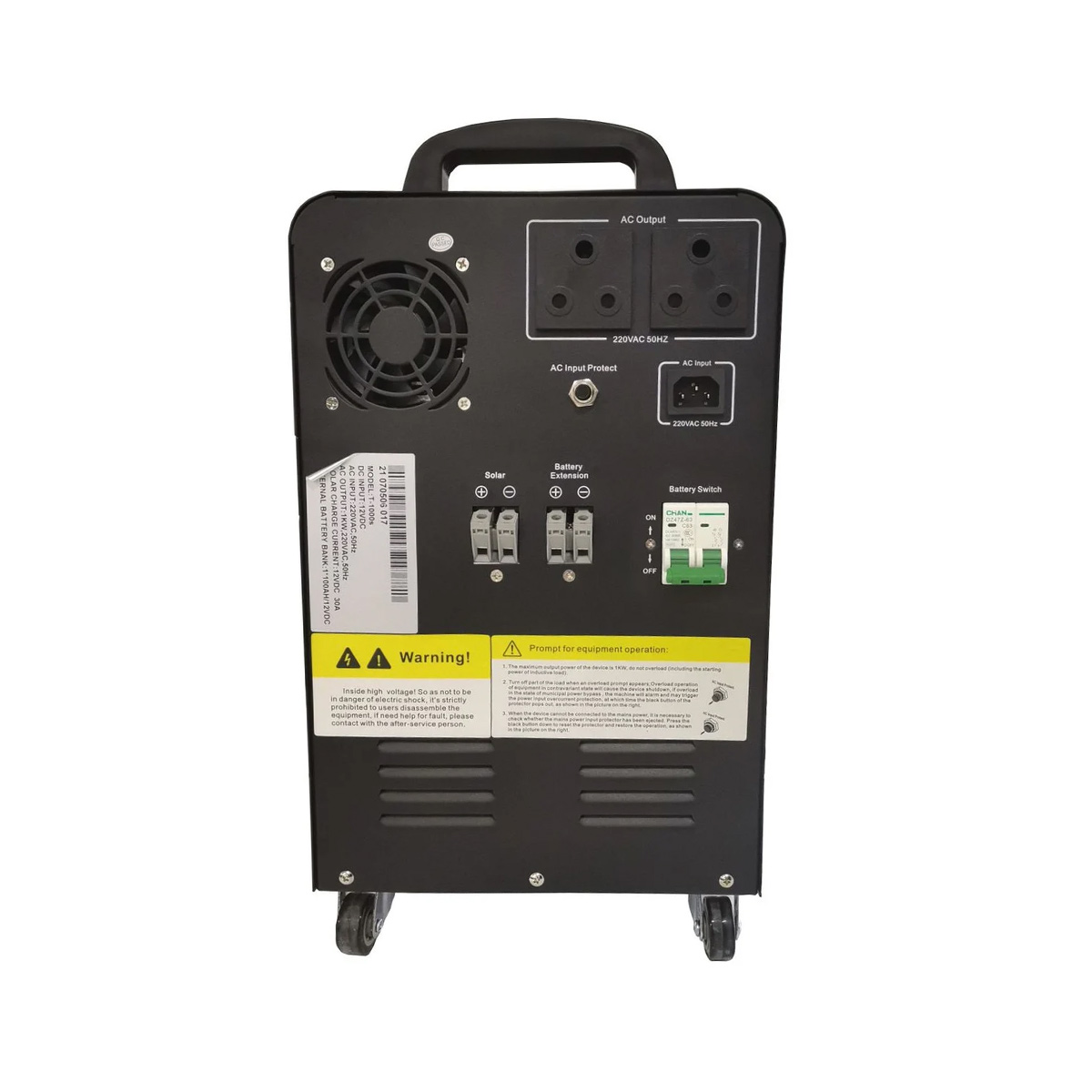

Ports and Interfaces:

• AC Output
• Smart Cooling Fan
• AC Input
• Solar PV Input
• Battery Extension
• Battery Switch
• Led Indicator
• LCD Display
• Function Buttons
• On / Off Buttons
• 5VDC Output
• 12VDC Output
• DC Output Switch
