SPECIFICATIONS
Brand	Samsung
Series	990 PRO
Model	MZ-V9P2T0BW
General
Capacity	2TB
Form Factor	2280 M.2
Interface	PCI-Express Gen 4.0 x4 NVMe 2.0
Storage Memory	Samsung V-NAND 3-bit MLC
Controller	Samsung Pascal Controller
Cache Memory	Samsung 2GB Low Power DDR4 SDRAM
Dimensions	80mm x 22mm x 2.3mm
Management Software	Magician Software for SSD Management
Key Features
TRIM Support	Yes
S.M.A.R.T Support	Yes
Garbage Collection	Auto Garbage Collection Algorithm
Encryption Support	AES 256-bit Encryption (Class 0) TCG/Opal IEEE1667
Device Sleep Mode Support	Yes
Performance
Sequential Read	Up to 7,450 MB/s
Sequential Write	Up to 6,900 MB/s
Random Read (4KB, QD32)	Up to 1,400,000 IOPS
Random Write (4KB, QD32)	Up to 1,550,000 IOPS
Random Read (4KB, QD1)	Up to 22,000 IOPS
Random Write (4KB, QD1)	Up to 80,000 IOPS
Environment
Average Power Consumption	Average: 5.5W W
Average Power Consumption	Maximum: 8.5 W (Burst mode)
Power consumption (Idle)	Max. 55 mW
Reliability (MTBF)	1.5 Million Hours
Allowable Voltage	3.3 V ± 5 %
Operating Temperature	0°C – 70°C
Shock	1,500 G & 0.5 ms
Warranty Information
Warranty	5 Year Limited Warranty or 1,200 TBW

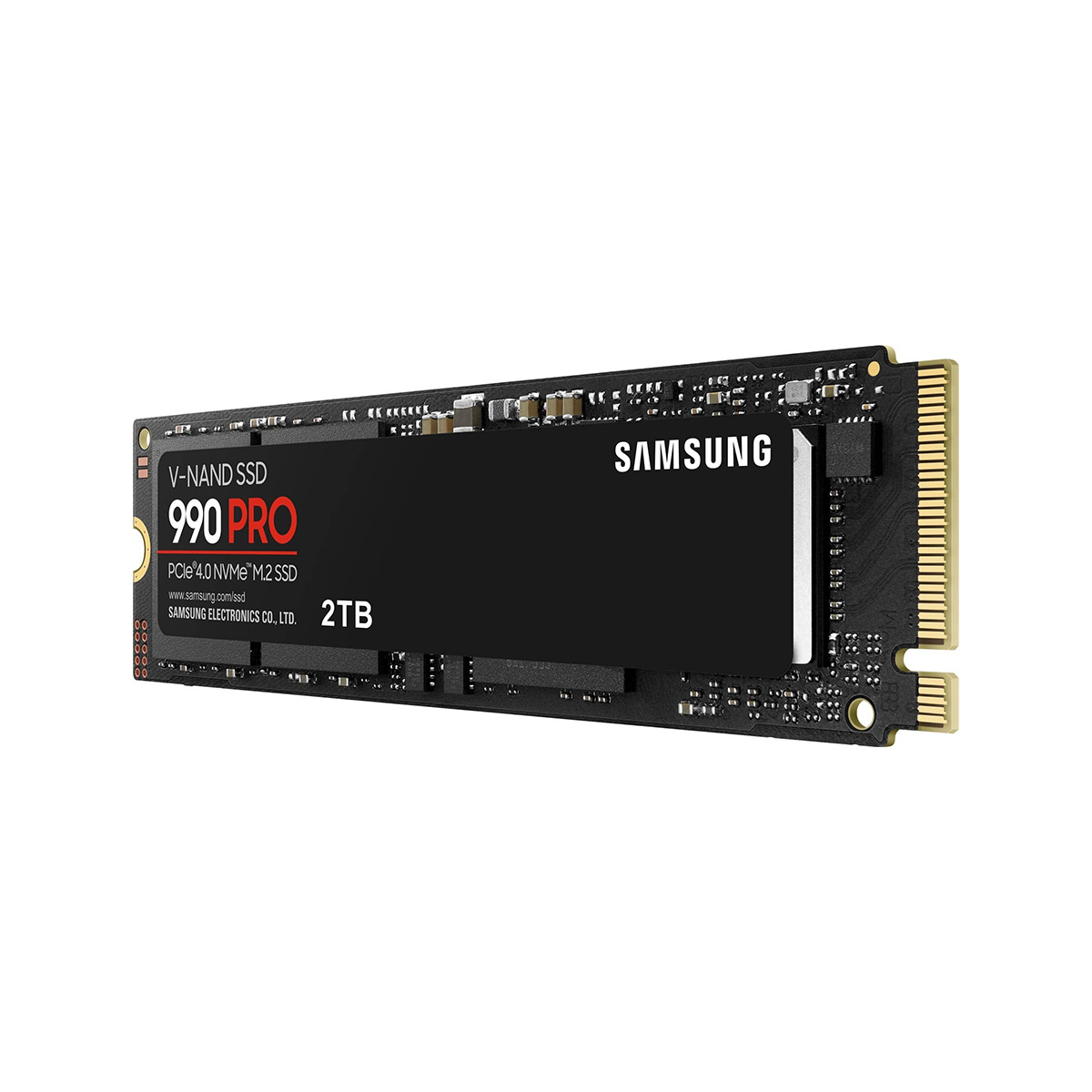

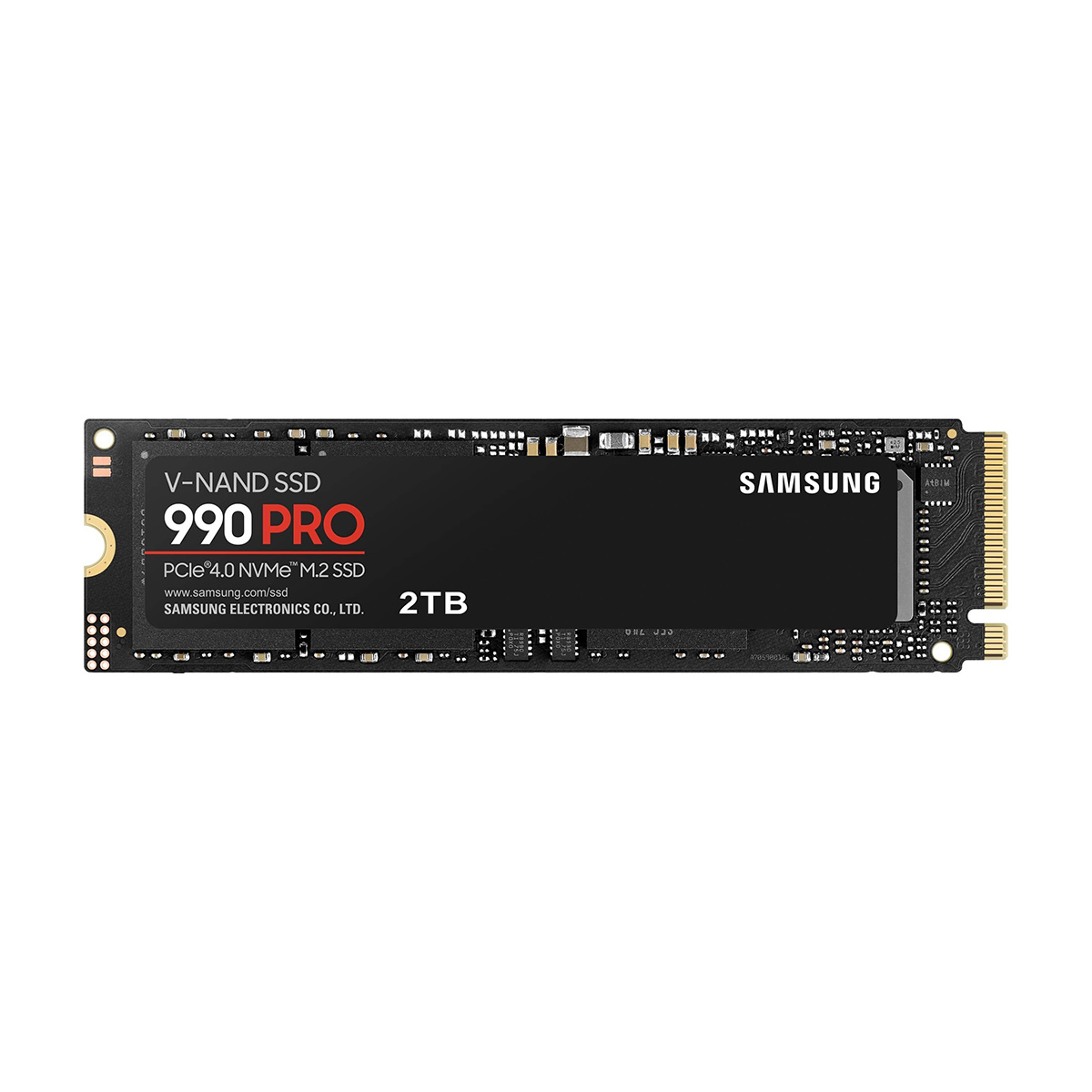

2TB Samsung 990 PRO NVMe M.2 2280 PCI-Express 4.0 x4 Solid State Drive
