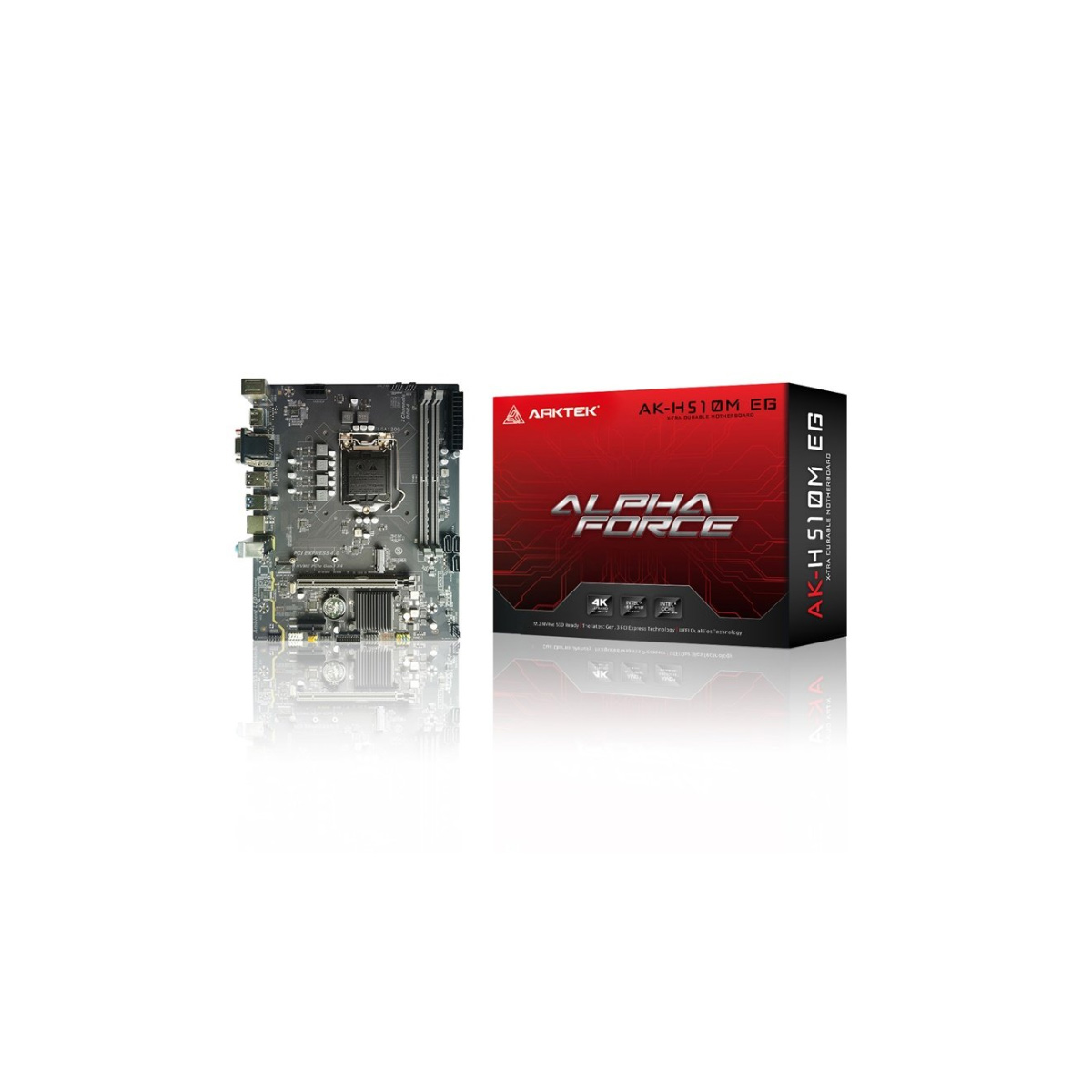

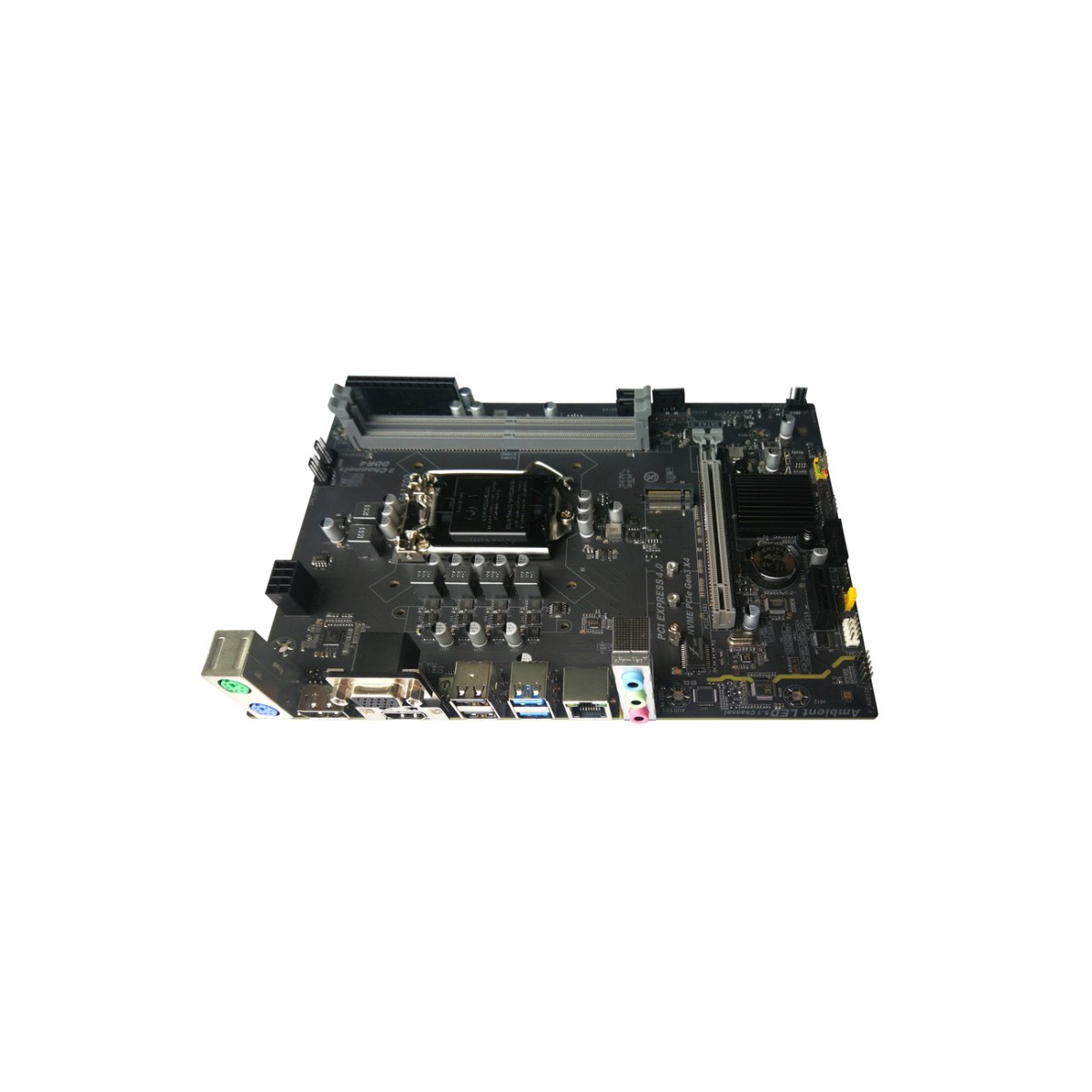

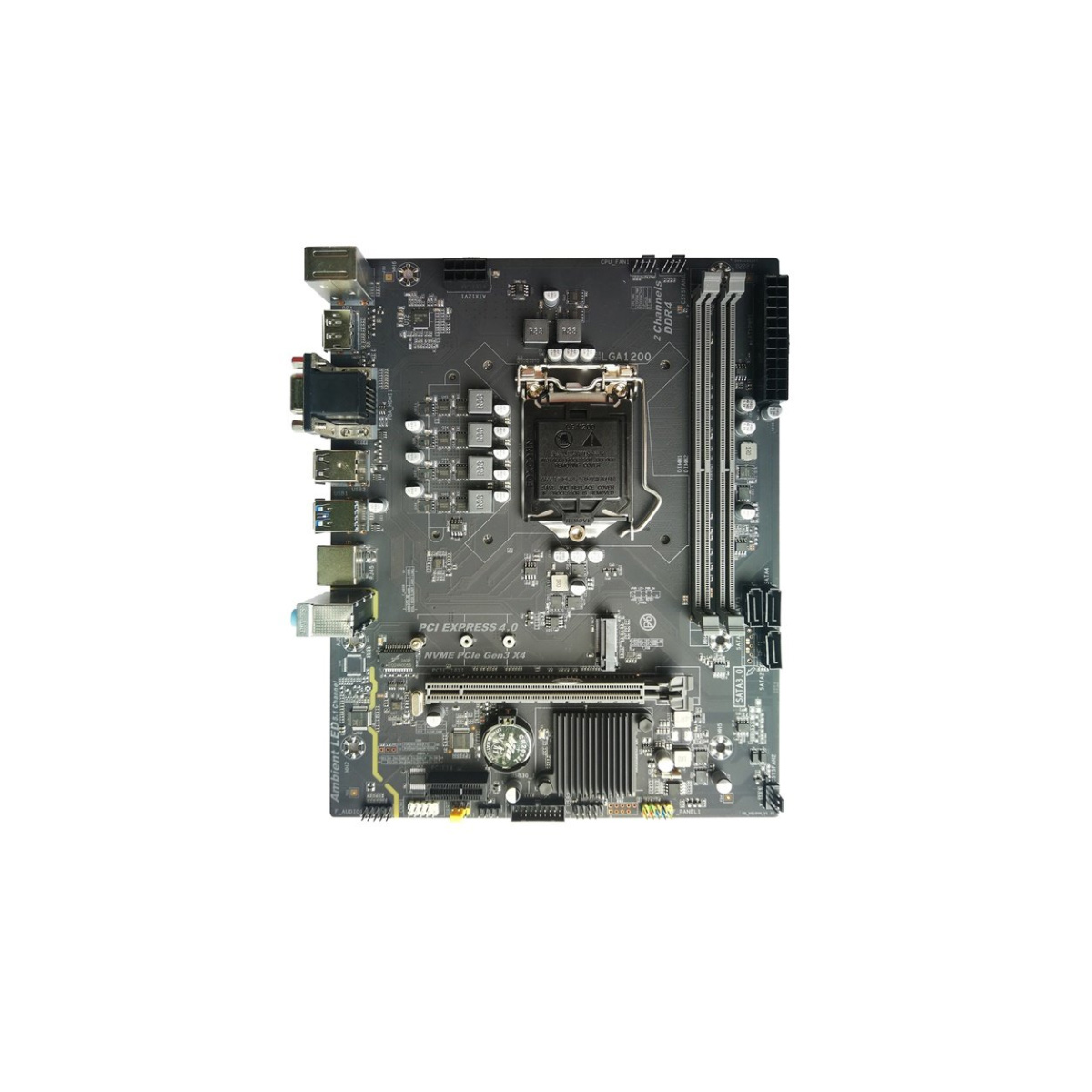

Arktek Intel H510 Intel Socket LGA1200 Micro-ATX Motherboard AK-H510M

ARKTEK One-Stop PC Solution

At ARKTEK, we are dedicated to bringing you Greatness in Gaming by offering you the leading edge in PC components at unbeatable pricing.

Since our 2006 inception as Keda Electronics, we’ve designed, developed, produced graphics cards as OEM/ODM providers for 30+ world-famous brands. Then in 2017, we launched the ARKTEK brand itself. Ever since, we’ve been dreaming up innovations to max out your PC’s capability with powerful, affordable hardware – and we’ve been blown away by your support! ARKTEK was created by gamers for gamers and we’ll always stay true to our roots. Discover Greatness in Gaming with ARKTEK and enjoy our unparalleled pre-and after-sales service

Overview

CPU Support: Intel® Socket 1151 for 7th Generation Core™ i7/Core™ i5/Core™ i3/Pentium®/Celeron® Processors Supports Intel® 14 nm CPU
Chipset: Intel H110 Chipset
On-Board Graphics: Integrated Graphics Processor-Intel® HD Graphics support
Memory: DDR4 2133 MHz (Max. Supports up to 16GB Memory)
DIMM: 2 x Memory Slots
LAN: On board Realtek® RTL8105E 10/100 Mbps adaptive network card interface
Audio: Chip integrated by Realtek 661 on board, Supports 6-channel audio-out
SATA: 4 x SATA port
Internal I/O:
2 x USB 2.0 header supports additional 4 USB 2.0 ports
1 x USB 3.0 header supports additional 2 USB 3.0 ports
1 x Front Panel Audio header
Expansion Slots: 1 x PCI Express x16 slot
Form Factor: Micro-ATX (19.7 x 17 cm)
OS Support: Support Windows 7 / 8 / 8.1 / 10(x64)
Mounting: 6 mounting holes
