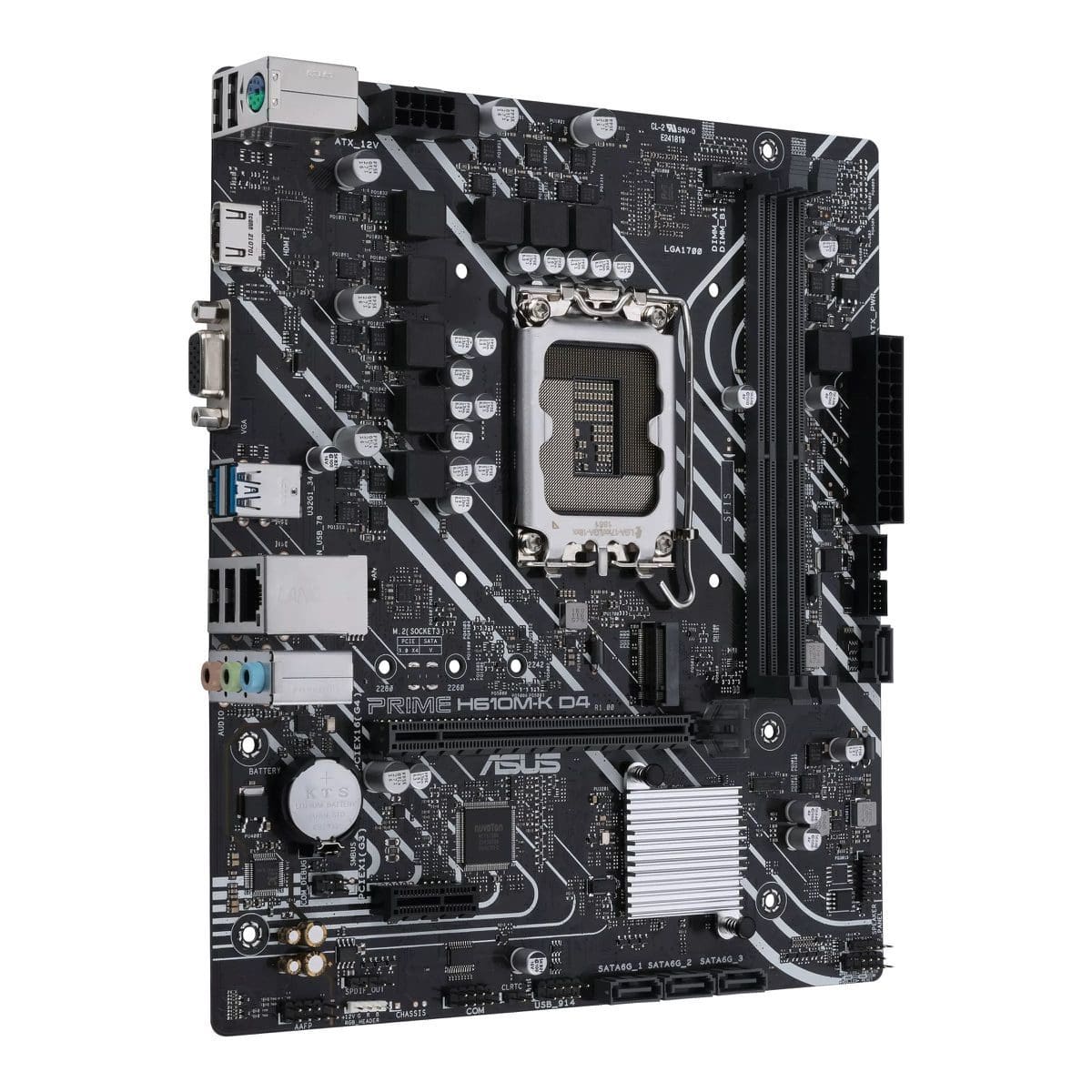

ASUS PRIME H610M-K D4 Intel H610 Socket Alder Lake LGA 1700 Micro-ATX Desktop Motherboard

Intel LGA 1700 socket: Ready for 12th Gen Intel processors
Comprehensive cooling: PCH heatsink and Fan Xpert
Ultrafast connectivity: 32Gbps M.2 slot, Realtek 1 Gb Ethernet and USB 3.2 Gen 1 support
5X Protection III: Multiple hardware safeguards for all-round protection

CPU
Intel Socket LGA1700 for 12th Gen Intel Core, Pentium Gold and Celeron Processors*
Supports Intel Turbo Boost Technology 2.0 and Intel Turbo Boost Max Technology 3.0**

Memory
2 x DIMM, Max. 64GB, DDR4 3200/3000/2933/2800/2666/2400/2133 Non-ECC, Un-buffered Memory*
Dual Channel Memory Architecture
Supports Intel Extreme Memory Profile (XMP)

Chipset
Intel H610 Chipset

Graphics
1 x D-Sub port
1 x HDMI port

Expansion Slots
Intel 12th Gen Processors
1 x PCIe 4.0 x16 slot
Intel H610 Chipset
1 x PCIe 3.0 x1 slot

Storage
Total supports 1 x M.2 slot and 4 x SATA 6Gb/s ports
Intel H610 Chipset
M.2 slot (Key M), type 2242/2260/2280 (supports PCIe 3.0 x4 & SATA modes)
4 x SATA 6Gb/s ports

Ethernet
1 x Realtek 1Gb Ethernet

USB
Rear USB (Total 6 ports)
2 x USB 3.2 Gen 1 ports (2 x Type-A)
4 x USB 2.0 ports (4 x Type-A)
Front USB (Total 4 ports)
1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports
1 x USB 2.0 header supports additional 2 USB 2.0 ports

Audio
Realtek 7.1 Surround Sound High Definition Audio CODEC
– Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
– Supports up to 24-Bit/192 kHz playback

Audio Features
– Audio Shielding
– Dedicated audio PCB layers

Back Panel I/O Ports
2 x USB 3.2 Gen 1 ports (2 x Type-A)
4 x USB 2.0 ports (4 x Type-A)
1 x D-Sub port
1 x HDMI port
1 x Realtek 1Gb Ethernet port
3 x Audio jacks
1 x COM port
1 x PS/2 Keyboard/Mouse combo port

Internal I/O Connectors
Fan and Cooling related
1 x 4-pin CPU Fan header
1 x 4-pin Chassis Fan header

Power related
1 x 24-pin Main Power connector
1 x 8-pin +12V Power connector

Storage related
1 x M.2 slot (Key M)
4 x SATA 6Gb/s ports

USB
1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports
1 x USB 2.0 header supports additional 2 USB 2.0 ports

Miscellaneous
1 x RGB header
1 x Clear CMOS header
1 x Front Panel Audio header (AAFP)
1 x LPT header
1 x S/PDIF Out header
1 x Speaker header
1 x SPI TPM header (14-1pin)
1 x 10-1 pin System Panel header

Special Features
ASUS 5X PROTECTION III
– DIGI+ VRM
– LANGuard
– Overvoltage Protection
– SafeSlot Core
– Stainless-Steel Back I/O

ASUS Q-Design
– Q-DIMM
– Q-Slot

ASUS Thermal Solution
– Aluminum heatsink design

ASUS Lighting Control
– RGB header

Form Factor
mATX Form Factor
9.2 inch x 8.0 inch ( 23.4 cm x 20.3 cm )
