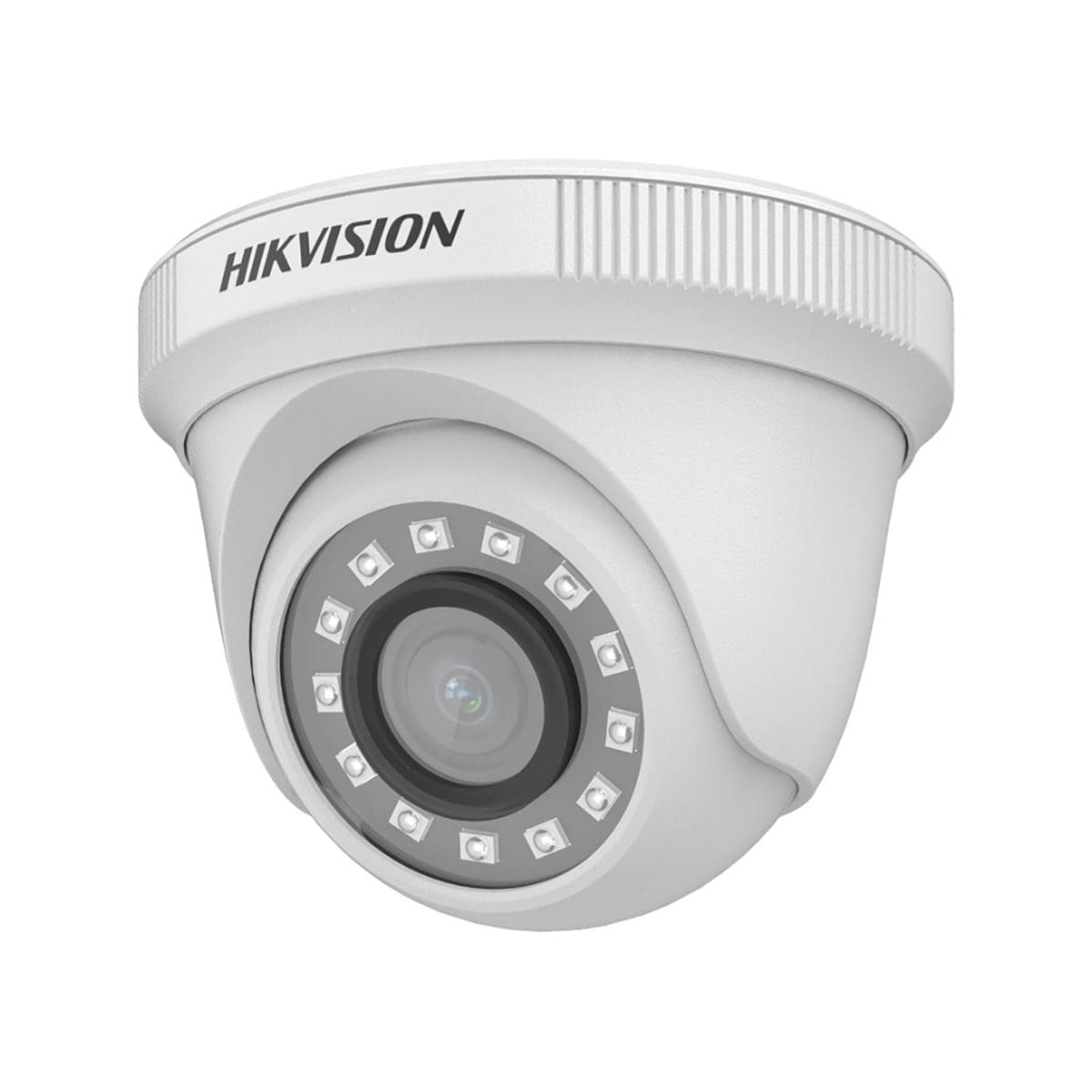

Hikvision 2MP 3.6mm Fixed Turret Camera DS-2CE56D0T-IRF3.6MM

Features

• 2 MP turret camera
• Smart IR: up to 25 m IR distance
• Water and dust resistant (IP67)
• 4 in 1 (4 signals switchable TVI/AHD/CVI/CVBS)

Technical Specification

Camera

• Image Sensor: 2 MP CMOS
• Max. Resolution: 1920 (H) ? 1080 (V)
• Min. Illumination: 0.01Lux @ (F1.2, AGC ON), 0 Lux with IR
• Shutter Time: PAL: 1/25 s to 1/50,000 s NTSC: 1/30 s to 1/50,000 s
• Day & Night: ICR
• Angle Adjustment: Pan: 0 to 360?, Tilt: 0 to 75?, Rotation: 0 to 360?
• Signal System: PAL/NTSC

Lens

• Lens Type: Fixed lens
• Focal Length & FOV: 3.6 mm, horizontal FOV: 79.6?, vertical FOV: 43.5?, diagonal FOV: 93.7?
• Lens Mount: M12


• Image Parameters Switch: STD/HIGH-SAT
• Image Settings: Brightness, Sharpness, Smart IR
• Frame Rate: TVI: 1080P@30fps, 1080P@25fps ; CVI: 1080P@30fps, 1080P@25fps ; AHD: 1080P@30fps, 1080P@25fps ; CVBS: PAL/NTSC
• Day/Night Mode: Auto/Color/BW (Black and White)
• Wide Dynamic Range (WDR): Digital WDR
• Image Enhancement: BLC, HLC
• White Balance: Auto/Manual
• AGC: Yes
