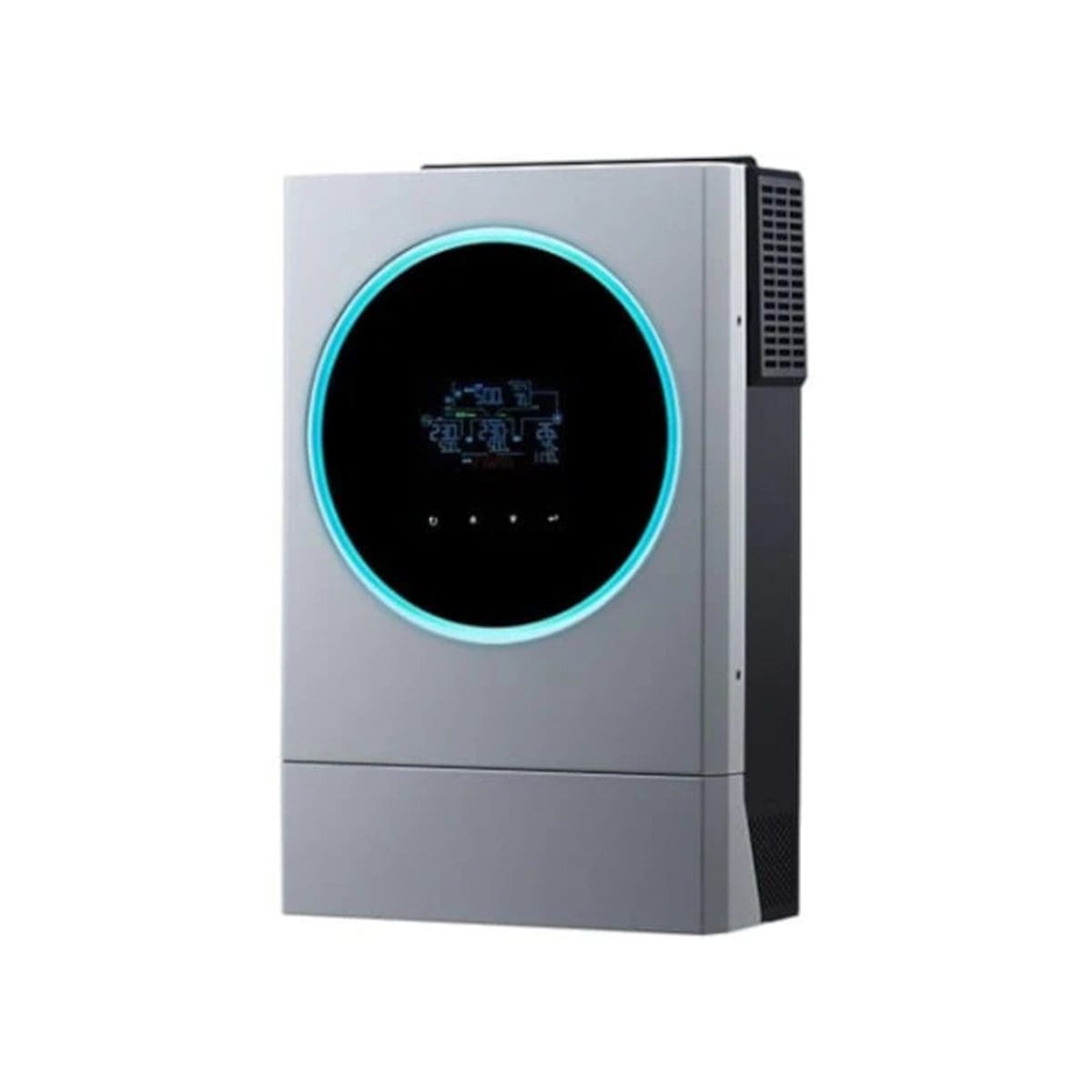

Mecer Inverter

Axpert MKS IV is equipped with MPPT solar charge controller to maximize and regulate DC power from the solar array for charging the battery bank. Transformer less design provides reliable power conversion in a compact size. The new generation of Axpert MKS comes with a built-in Wi-Fi function, mobile monitoring can be carried out through mobile applications. Data can be accessed and recorded in the inverter, which is convenient for tracking the operation status of the inverter. It also supports USB On -The go function for easy rewriting of internal parameters, data downloads, and software updates.

Features:
– Pure sine wave MPPT Solar Inverter
– Customizable status LED ring with RGB lights
– Touchable button with large 4.3 coloured LCD
– Wide DC input range
– Supports USB On-the-Go function
– Data log events stored in the inverter
– Built-in Wi-Fi for mobile monitoring (Android/iOS App available)
– Reserved communication port for BMS
– Battery-independent function
– Parallel operation with up to 9 units
– Rated power 5600va/5600w
– Voltage 230 vac

Selectable voltage range:
– 170-280 vac (for personal computers)
– 90-280 vac (for home appliances)
– Frequency range 50Hz/60 Hz (auto sensing)

Output:
– Ac voltage regulation (batt. Mode) 230 vac +/- 5%
– Overload capacity 5s at ?150% load; 10s at 110%~150% load; 100ms at ?200% load
– Efficiency (peak) 93 %
– Transfer time 10ms (for personal computers) ; 20ms (for home appliances)
– Waveform pure sine wave
– Dual outputs -Yes

Battery
– Battery voltage 48 vdc
– Floating charge voltage 54 vdc
– Overcharge protection 66 vdc

Solar charger & AC charger:
– Solar charger type MPPT 6000w
– MPPT range at operating voltage 120 ~ 430 vdc
– Maximum pv array open circuit voltage 450 vdc
– Maximum solar charge current 120a
– Maximum ac charge current 120a

Operating Environment:
– Humidity 5% to 95% relative humidity(non-condensing)
– Operating temperature -10 Degrees C to 50 Degrees C
– Storage temperature -15 Degrees C to 60 – Degrees C
