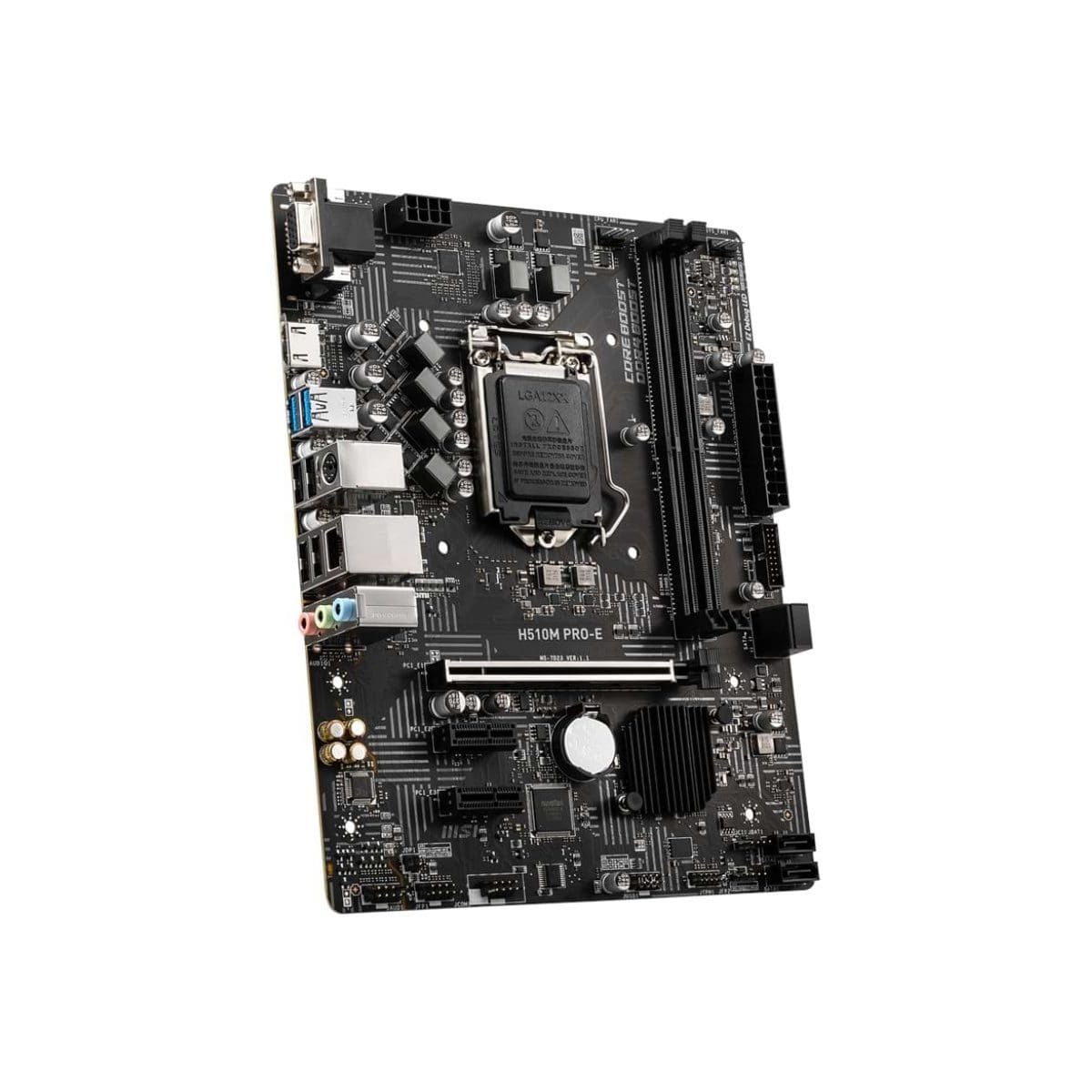

MSI H510M Pro-E LGA1200 Micro-ATX Desktop Motherboard
- Micro-ATX Form Factor Motherboard
- Intel H510 Chipset
- LGA 1200 Socket Supports 11th & 10th Gen Core Processors
- 2x DDR4 DIMM Slots, Up to 64GB (2x32GB)
- Supports Up to DDR4-3200
- 1x PCIe 4.0 x16 Slot
- 2x PCIe 3.0 x1 Slot
- 4x SATA 3.0 Ports
- 2x USB 5Gb/s Type-A Ports
- 4x USB 2.0 Type-A Ports
- 1x PS/2 Combo Port
- 1x HDMI 1.4 Port, 1x VGA D-Sub Port
- 3x 3.5mm Audio Jacks (Line Out, Line In, Microphone)
- Realtek RTL8111H Gigabit Ethernet RJ-45 LAN
- Realtek ALC897 High-Definition Audio Codec
- MSI EZDebug LED
- MSI Steel Armour PCIe Slot Design
- MSI Center Software
- Supports Windows 10, Windows 11 64-bit
- 3 Year Warranty
R1,614.00 incl vat
MSI H510M Pro-E Intel Socket LGA 1200 micro ATX Motherboard H510M PRO-E
PRO series helps users work smarter by delivering an efficient and productive experience. Featuring stable functionality and high-quality assembly, PRO series motherboards provide not only optimized professional workflows but also less troubleshooting and longevity.
FROZR AI COOLING
Detecting CPU & GPU temperatures and automatically adjusting fan duty of system fans to a proper value by adopting MSI AI ENGINE.
FULLY CONTROLLABLE IN BIOS AND SOFTWARE
MSI motherboards let you manage speeds and temperatures for all your system and CPU fans. Total Fan Control allows you check your primary system characteristics in a simplified graphical interface. You can also set up to 4 temperature targets for CPU and motherboard, which will adjust the fan speeds automatically.
FAST AND FUTURE-READY STORAGE
MSI PRO series motherboards support all the latest storage standards, which allows users to connect any ultra-fast storage device. Higher efficiency makes your work easier.
EXTREME STABILITY & COMPATIBILITY TESTING
MSI conducts thorough memory testing with the most popular memory brands under extreme conditions to ensure your system runs stable no matter what. Our memory partners include brands like Corsair, Crucial, Kingston, G.Skill and many more to optimize memory modules and configurations.
| SPECIFICATIONS | |
| Brand | MSI |
| Series | PRO Series |
| Model | H510M PRO-E |
| CPU Support | LGA1200 socket: Supports 10th Gen Intel Core Processors, 11th Gen Intel Core Processors, Pentium Gold and Celeron Processors |
| Chipset | Intel H510 Express |
| Memory Support | |
| Intel 10th & 11th Gen Series | 2x DDR4 memory slots, support up to 64GB |
| Supports 1R 2133/ 2666/ 2933 MHz for 10th Gen Intel CPU (by JEDEC & POR) | |
| Supports 1R 2133/ 2666/ 2933/ 3200 MHz for 11th Gen Intel CPU (by JEDEC & POR) | |
| Supports Dual-Channel mode | |
| Supports non-ECC, un-buffered memory | |
| Supports Intel Extreme Memory Profile (XMP) | |
| Video | |
| VGA | 1x VGA D-Sub, maximum resolution of 2048×1536 50Hz, 2048×1280 60Hz, 1920×1200 60Hz |
| HDMI | 1x HDMI port, supporting a maximum resolution of 4096×2160 @ 30 Hz, Support for HDMI 1.4 and HDCP |
| Integrated Intel graphics required. Actual support may vary by CPU. | |
| Expansion Slots | |
| CPU Direct | 1x PCIe 4.0 x16 Physical, x16 Electrical Slot (Support up to PCIe 3.0 for 10th Gen Intel CPU) |
| Intel B760 Chipset | 2x PCIe 3.0 x1 Physical, x1 Electrical Slots |
| Storage | |
| Intel B760 Chipset | 4x SATA 6Gb/s connectors |
| Networking | |
| LAN | Realtek RTL8111H Gigabit LAN 10/100/1000Mbps |
| WiFi | N/A |
| Bluetooth | N/A |
| Audio | |
| Codec | Realtek ALC897 Codec |
| 7.1-Channel USB High Performance Audio with front-panel jack retasking | |
| Connectivity | |
| Ports | 2x USB 2Gb/s Type-A Ports |
| 4x USB 2.0 Type-A Ports | |
| 1x VGA D-Sub | |
| 1x HDMI 1.4 | |
| 3x 3.5mm Audio Jacks (Line Out, Line In, Microphone) | |
| 1x PS/2 Combo Port | |
| 1x Realtek RTL8111H Gigabit LAN | |
| Buttons | N/A |
| General | |
| Internal Connectors | 1x 24-pin ATX main power connector |
| 1x 8-pin ATX 12V power connector | |
| 4x SATA 6Gb/s connectors | |
| 1x USB 3.2 Gen 1 5Gbps connector (support additional 2 USB ports) | |
| 1x USB 2.0 connector (support additional 2 USB ports) | |
| 1x 4-pin CPU fan connector | |
| 1x 4-pin system fan connector | |
| 1x Front panel audio connector | |
| 2x System panel connectors | |
| 1x Serial port connector | |
| 1x Chassis Intrusion connector | |
| 1x Clear CMOS jumper | |
| 1x TPM module connector | |
| I/O Controller | NUVOTON NCT6687-R Controller Chip |
| LED Displays | 4x EZ Debug LED |
| BIOS | 1x 256 Mb flash |
| UEFI AMI BIOS | |
| ACPI 6.4, SMBIOS 3.5 | |
| Multi-language | |
| Form Factor | Micro-ATX Form Factor, 236.6 x 190mm (H x W) |
| Operating System Support | Windows 10 64-bit |
| Windows 11 64-bit | |
| Boxed Accessories | Quick installation guide |
| European Union regulatory notice | |
| 2x SATA 6Gb/s cables | |
| 1x I/O Shield | |
| Driver DVD | |
| MSI Case Badge | |
| Warranty Information | |
| Warranty | 3 Year Warranty |
