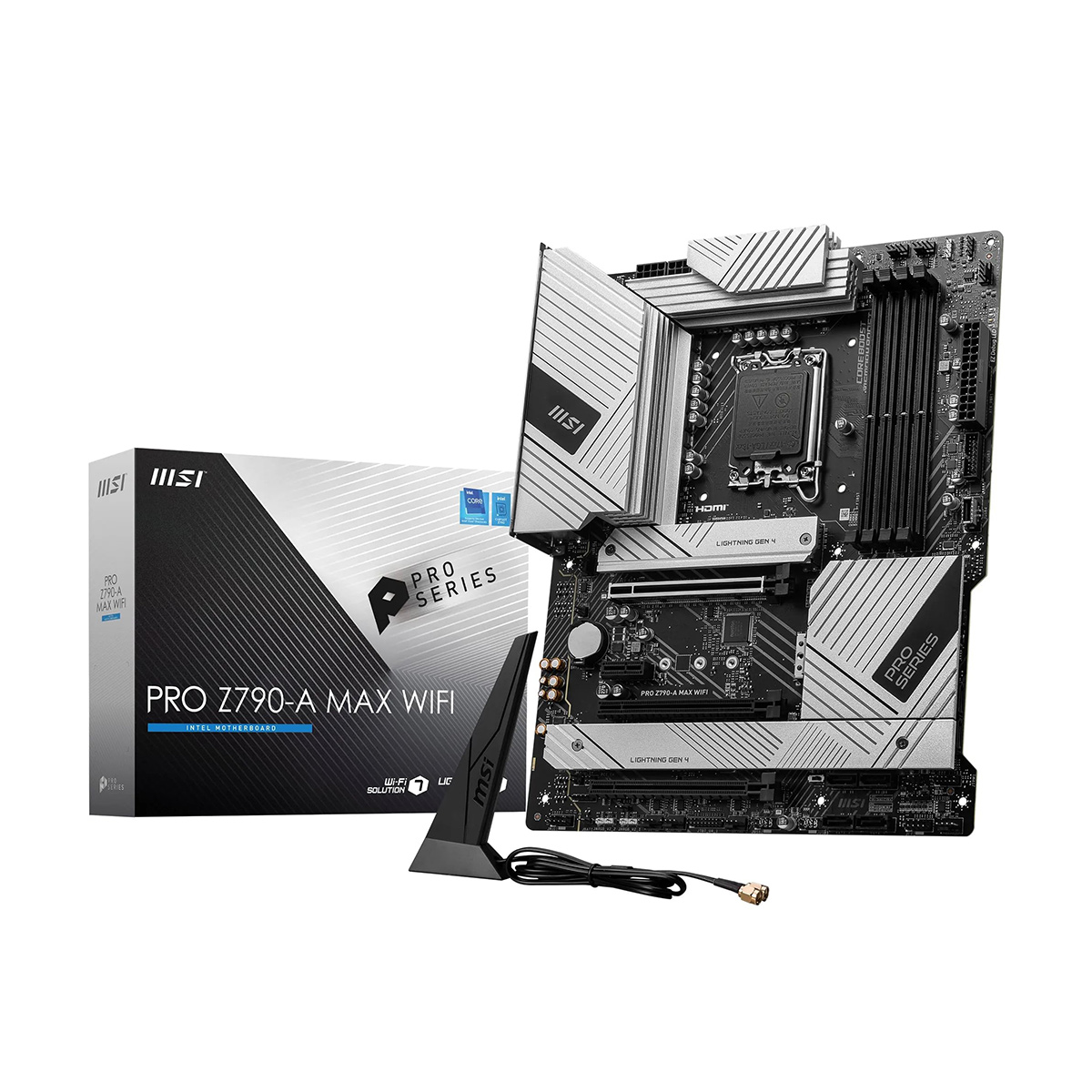

MSI Pro Z790-A Max Wi-Fi Intel LGA 1700 ATX Motherboard
- Product: MSI PRO Z790-A MAX WIFI
- Component for: PC
- Motherboard form factor: ATX
- Processor manufacturer: Intel
- Processor socket: LGA 1700
- Motherboard chipset family: Intel Z790
- Compatible processor series: Support Intel Core 14th / 13th / 12th Gen Processors, Intel Pentium Gold and Celeron Processors
- UDIMM slots: 4x
- Memory type: DDR5-SDRAM
- Maximum internal memory: 256 GB
- Memory Support: 7800+(OC) / 7600(OC) / 7400(OC) / 7200(OC) / 7000(OC) / 6800(OC) / 6600(OC) / 6400(OC) / 6200(OC) / 6000(OC) / 5800(OC) / 5600(JEDEC) / 5400(JEDEC) / 5200(JEDEC) / 5000(JEDEC) / 4800(JEDEC) MHz
- Supported storage drive interfaces: 4x M.2 PCI Express, 6x SATA
- Supported storage drive types: HDD & SSD
- RAID levels: 0, 1, 5, 10
- Ethernet interface type: 2.5 Gigabit Ethernet
- Wi-Fi: Wi-Fi 7
- Wi-Fi standards: 802.11a, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax), Wi-Fi 7 (802.11Be)
- Bluetooth: 5.4*
- Graphics ports: 1x HDMI, 1x DisplayPort
- PCI slot: 3x PCI-E x16 slot, 1x PCI-E x1 slot
R8,602.00 incl vat
Discount per Quantity
| Quantity | 5 - 9 | 10 - 29 | 30 + |
|---|---|---|---|
| Discount | 5% | 10% | 15% |
| Price | R8,171.90 incl vat | R7,741.80 incl vat | R7,311.70 incl vat |
MSI Pro Z790-A Max Wi-Fi Intel LGA 1700 ATX Motherboard
PRO Z790-A MAX WIFI offers a simple design with a harmonious silver color scheme that perfectly matches white and black PC builds. It is engineered with many exclusive features of MSI, a convenient Wi-Fi 7 solution, and DDR5 optimization for Intel Core 14th Gen and 13th Gen processors.
Features
- Support Intel Core 14th/ 13th/ 12th Gen Processors, Intel Pentium Gold and Celeron Processors for LGA 1700 socket
- Supports DDR5 Memory, Dual Channel DDR5 7800+MHz (OC)
- Enhanced Power Design: 16+1+1 DRPS with 80A SPS, dual 8-pin CPU power connectors, Core Boost, Memory Boost
- Premium Thermal Solution: Extended Heatsink, MOSFET thermal pads rated for 7W/mK, additional choke thermal pads and M.2 Shield Frozr are built for high performance system and non-stop gaming experience
- High Quality PCB: 6-layer PCB made by 2oz thickened copper and server grade level material
- Lightning Fast Game experience: PCIe 5.0 slot, Lightning Gen 4 x4 M.2, USB 3.2 Gen 2×2
- Intel Turbo USB 3.2 Gen 2: Powered by Intel USB 3.2 Gen2 controller, Turbo USB ensures an uninterrupted connection with more stability and fastest USB speeds
- 2.5G LAN with Wi-Fi 7 Solution: Upgraded network solution for professional and multimedia use. Delivers a secure, stable and fast network connection
- AUDIO BOOST 5: Reward your ears with studio grade sound quality for the most immersive gaming experience
Extended Heatsink
Extended Heatsink enlarges the surface of heat dissipation and maintain the performance at heavy loads.
M.2 Shield Frozr
Strengthened M.2 thermal solution helps keep M.2 SSD safe and ensures incredible performance.
Heavy Plated VRM Heatsink
The VRM heatsink covers the upper MOS and helps dissipate the heat.
7W/mK Thermal Pad & Additional Choke Pad
High-quality 7W/mK MOSFET thermal pads and additional choke thermal pads ensure stable performance when all cores are runnging at high speed.
Enlarged Chipset Heatsink
The enlarged heatsink is designed to reduce dust and noise and capable of maintaining high efficiency of heat dissipation.
SMT PCIE 5.0 Slot
The advanced SMT(Surface Mount Technology) PCIE slot diminish interference and electrical noise, fully support the PCI-E 5.0 signal.
The Isolated Analogy Structure for Audio Connectors
To provide clear voice, MSI develops a unique structure – Isolated Analogy Structure. The external metal framework of the audio connectors is separated from the internal layout, which ensures the sound quality crisp.
Technical Specification
USB ports
- 2x USB 2.0 (Rear)
- 4x USB 2.0 (Front)
- 2x USB 5Gbps Type A (Rear)
- 2x USB 5Gbps Type A (Front)
- 3x USB 10Gbps Type A (Rear)
- 1x USB 10Gbps Type C (Front)
- 1x USB 20Gbps Type C (Rear)
Internal I/O Ports
- 1x Power Connector(ATX_PWR)
- 2x Power Connector(CPU_PWR)
- 1x CPU Fan
- 1x Pump Fan
- 6x System Fan
- 2x Front Panel (JFP)
- 1x Chassis Intrusion (JCI)
- 1x Front Audio (JAUD)
- 1x Tuning Controller connector(JDASH)
- 3x Addressable V2 RGB LED connector (JARGB_V2)
- 1x RGB LED connector(JRGB)
- 1x TPM pin header(Support TPM 2.0)
- 1x USB4 card connector (JTBT_U4_1, supports RTD3)
- 4x USB 2.0 ports
- 2x USB 5Gbps Type A ports
- 1x USB 10Gbps Type C ports
